Ralph Messring Company with Limited Liability
|

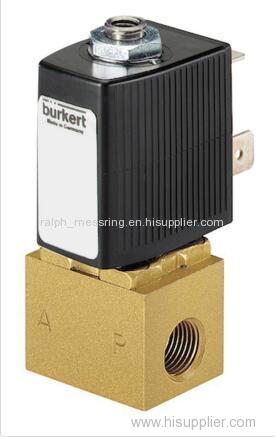

Burkert solenoid valve Germany
| Price: | 93.0 EUR |
| Payment Terms: | T/T |
| Place of Origin: | Germany |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Valve 6012 is a direct-acting plunger valve. The stopper and plunger guide tube are welded together to enhance pressure resistance and leak-tightness.
Various seal material combinations are available depending on the application. A Bürkert-specific flange design (SFB) enables space-saving arrangement of valves on a manifold. Push-in fittings can be selected for flexible hose connection. A banjo connection with banjo bolt is the ideal solution for easy direct mounting on a pneumatic drive. Optional manual actuation enables quick commissioning and optimal maintenance. The coils are moulded with polyamide. In combination with a plug in accordance with DIN EN 17301-803 Form B or C, the valves satisfy protection class IP65.
| Name | Value | Unit |
| Type | 6012 | |
| Operation | direct-acting | |
| Actuator type | Plunger valve | |
| Main valve operating principle | Globe valve | |
| Switch function | on/off | |
| Media separation | No | |
| Valve function | C - normally inlet port 1 (P/NC) closed, outlet port 2 (A/OUT) conectedwith exhaust port 3 (R/NO) | |
| Fluidic port connection number | 3 | PCE |
| Valve function number of switching positions | 2 | PCE |
| Valve function manual actuation | Yes | |
| Valve function manual actuation type | Rotary level | |
| Valve function manual actuation material | PA (Polyamide) | |
| Valve function manual actuation stop | No | |
| Valve function manual actuation screw slot | Yes | |
| Flow | Below seat | |
| Nominal pressure min | 0 | bar |
| Nominal pressure max (gas) | 10 | bar |
| Nominal pressure max (liquid) | 10 | bar |
| Main valve orifice 1 (P) (mm) | 1.2 | mm |
| Kv value (water) | 0.045 | m3/h |
| QNn value (gas) | 48 | l/min |
| Main valve wetted material | PA (Polyamide) | |
| Port connection 1 type | Banjo | |
| Port connection 1 pre-mounted | Hose plug-in connector angled 6 mm | |
| Port connection 2 type | Banjo | |
| Port connection 2 thread type | G | |
| Port connection 2 thread marking | 1/8 | |
| Port connection 3 type | Inner thread | |
| Port connection 3 thread type | M | |
| Port connection 3 thread marking | 5 | |
| Seat seal material | FKM (Fluor rubber) | |
| Sealing toward outside material | NBR (Nitrile rubber) | |
| Temperature environment min | -10 | °C |
| Temperature environment max | 40 | °C |
| Temperature medium min | -10 | °C |
| Temperature medium max | 60 | °C |
| Voltage / rated voltage | 24 | V |
| Voltage / rated voltage | 24 | V |
| Voltage tolerance negative | 10 | % |
| Voltage tolerance positive | 10 | % |
| AC voltage | No | |
| DC voltage | Yes | |
| Battery voltage | No | |
| Rated power DC | 5.5 | W |
| Reduced power DC | 5.5 | W |
| Rated power consumption | 4 | W |
| Electrical connection sort | Plug pattern form B according to industrial standard | |
| Electrical connection number of contacts | 2 + Grounding conductor | |
| Cable plug in delivery | not included | |
| Electrical connection position | In direction of flow right | |
| Protection type (IP max. with suitable connector) | 65 | |
| Coil type | placed on top | |
| Coil insulation material (encasement) | Epoxy | |
| Coil size | 20 | mm |
| Coil wiring overvoltage protection | without | |
| Coil wiring rectifier | No | |
| Coil wiring polarity recovery diode | No | |
| Coil special feature | for high temperatures | |
| Thermal insulation class of the actuator | H | |
| Nominal operation/Duty cycle | 100 | % |
| Switch time open min | 7 | ms |
| Switch time open max. | 12 | ms |
| Switch time close min | 7 | ms |
| Switch time close max. | 12 | ms |
| Valve setting opening time | No | |
| Valve setting closing time | No | |
| Back-pressure-resistant version | No | |
| Vacuum version | No | |
| Analysis version | No | |
| Oil burner valve | No | |
| Steam version | No | |
| Low-noise version | No | |
| Main valve with integrated screen | No | |
| Without mounting | No | |
| Valve construction | Valve complete | |
| Weight | 0,131000 | kg |
